Details:

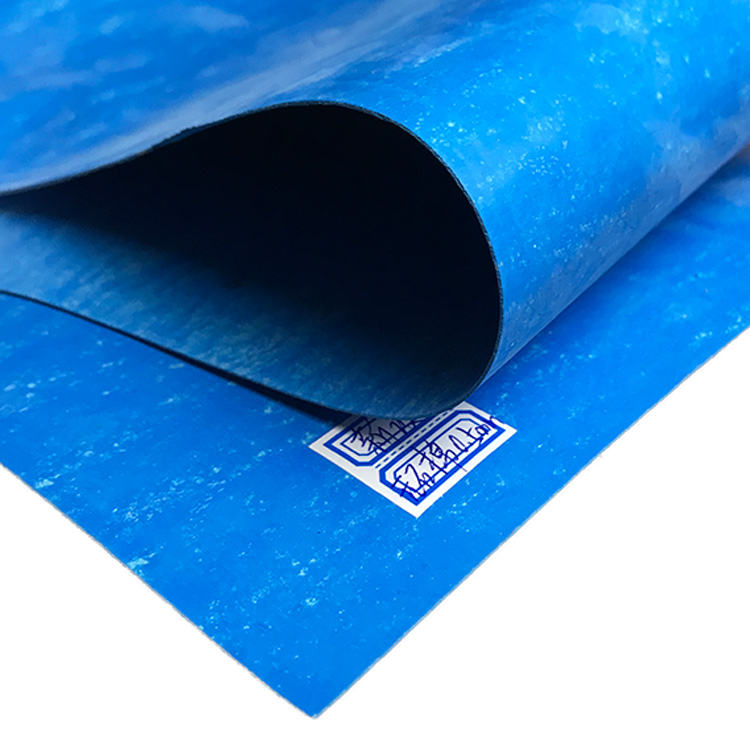

Non-Asbestos Joint Sheet are made of the frame materials including aramid fiber and synthetic mineral fiber after special proportioning with oil-resistant rubber binders and adding other functional additives and compression molding it. Uses: Substitution of corresponding models of asbestos rubber sheet,used for the equipment in water, steam,etc. and used as sealing material in the joints of pipeline.

Key Features:

1) Non-asbestos rubber sheet
Uses: Used for the equipment in water, steam, etc. and used as sealing material in the joints of pipeline
Working pressure: 1.5～8.0 MPa,
Working temperature: 200 ～350℃
2) Oil-resistance non-asbestos rubber sheet
Uses Substitution of corresponding models of asbestos rubber sheet , Mainly used as the aviation liquid the motive's kerosene, lubricant, the fuel oil and cold air system to join together the seal completely of place the sealing gasket material.
Working pressure: 7.0～12 MPa
Working temperature: 150 ～350℃

Specification:

• Model Number: Asbestos Free Gasket Sheet
• Material：non asbestos

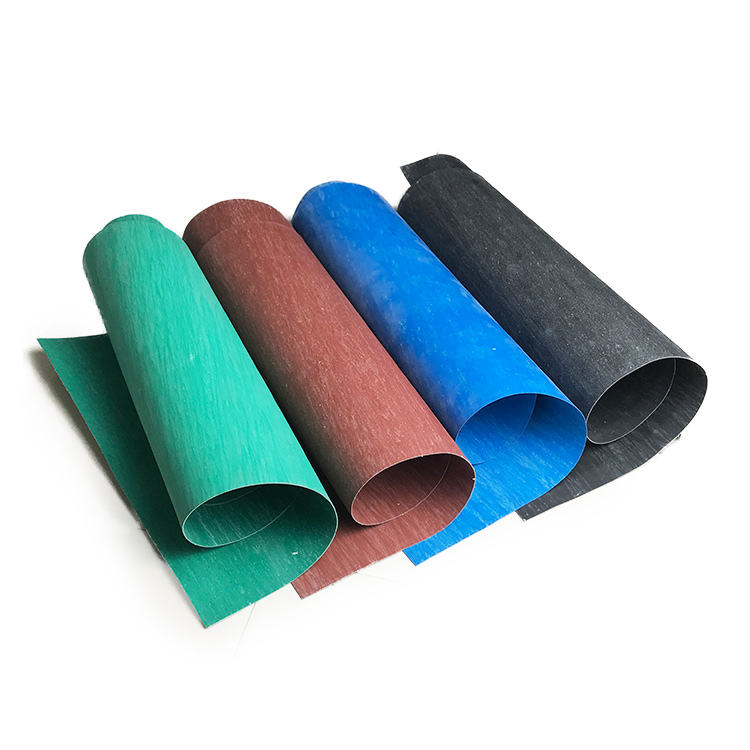

• Color: Black, Green, Red
• Usage: Sealing Gasket Material
• Keywords: non asbestos gasket sheet
• MOQ: 300 KG
• Application: Sealing Material
• Packing: wooden case
• Standard or Nonstandard: Standered
• Temperature: 150 ~350℃
• Packing: in wooden pallet of about 1000 kgs, 2000kgs net each.
• Thickness: 0.5 to 5mm
  1500 x 4500mm, 1500 x 4100mm, 1300 x 3810mm, 1500 x 2000mm,
  1500 x 1500mm, 1500 x 1360mm, 1500 x 1000mm , 1270 x 1270mm,
  (The other size is optional or according to the requirements of customers.
  At the same time, steel wire net inserted (coated graphite) is available.)
